The Site: Low Plaza

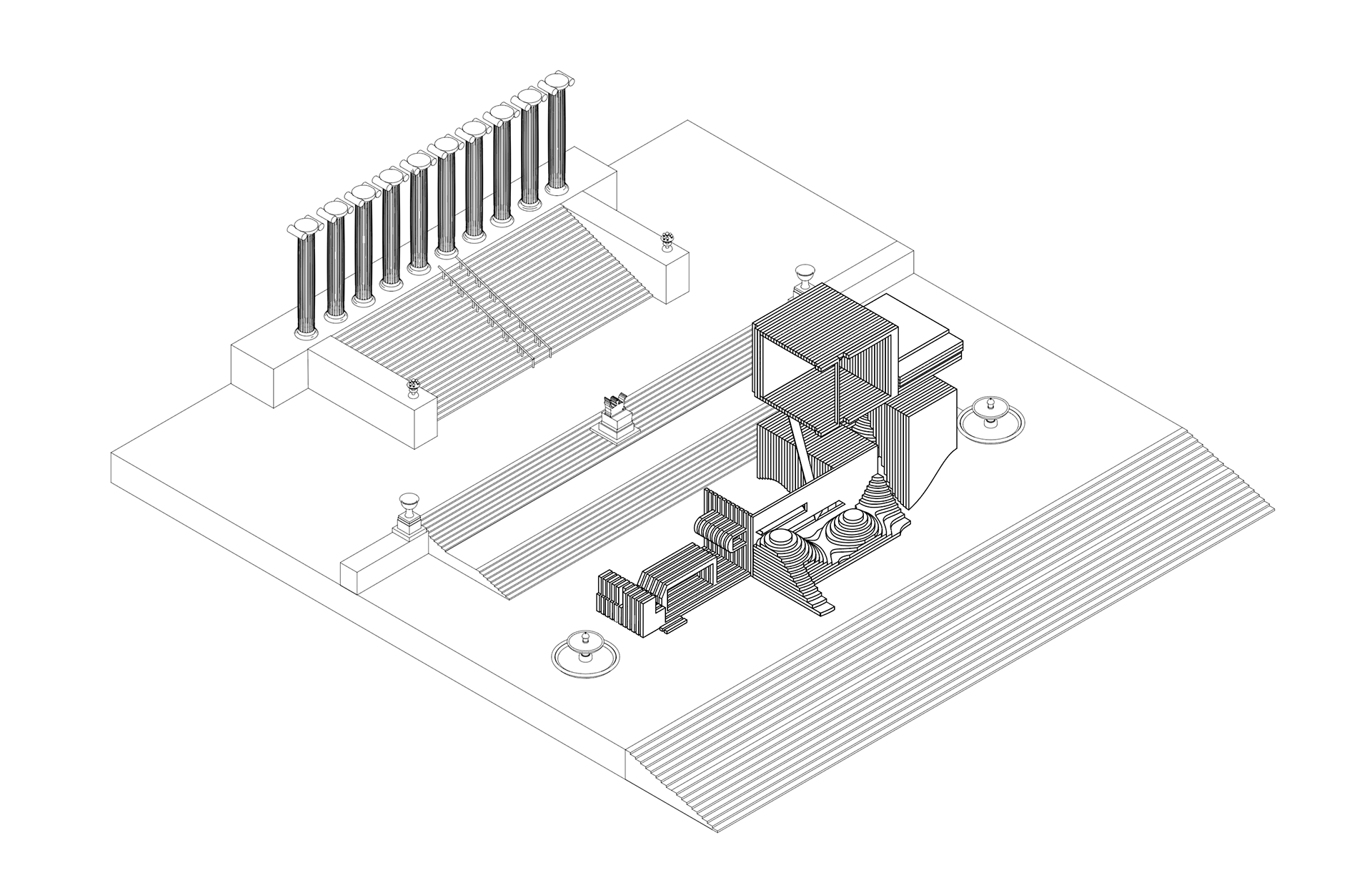

An installation will be developed for an academic institution at Columbia University that is turned inside out by using ad-hoc and performative technologies.
The installation will be located on the Low Library Plaza which accommodates the daily functions of the chosen academic unit.
The Unit: Alfred Lerner Hall Level 2
Alfred Lerner Hall is the student center of Columbia University. Situated on the university's Morningside Heights campus, the building is designed by Bernard Tschumi.
Program Analysis

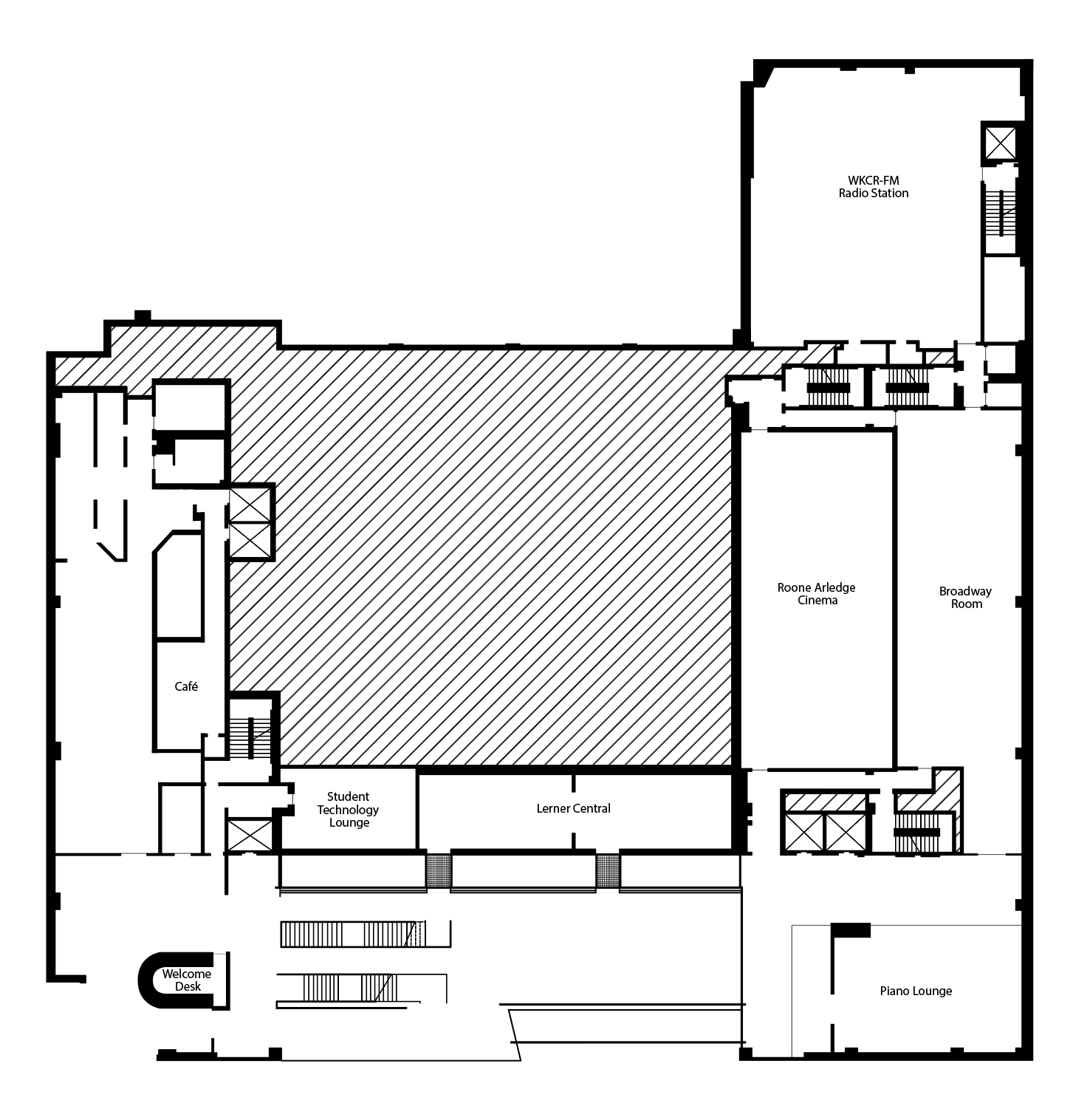

STEP 1: Determine the functional components in the floor plan.

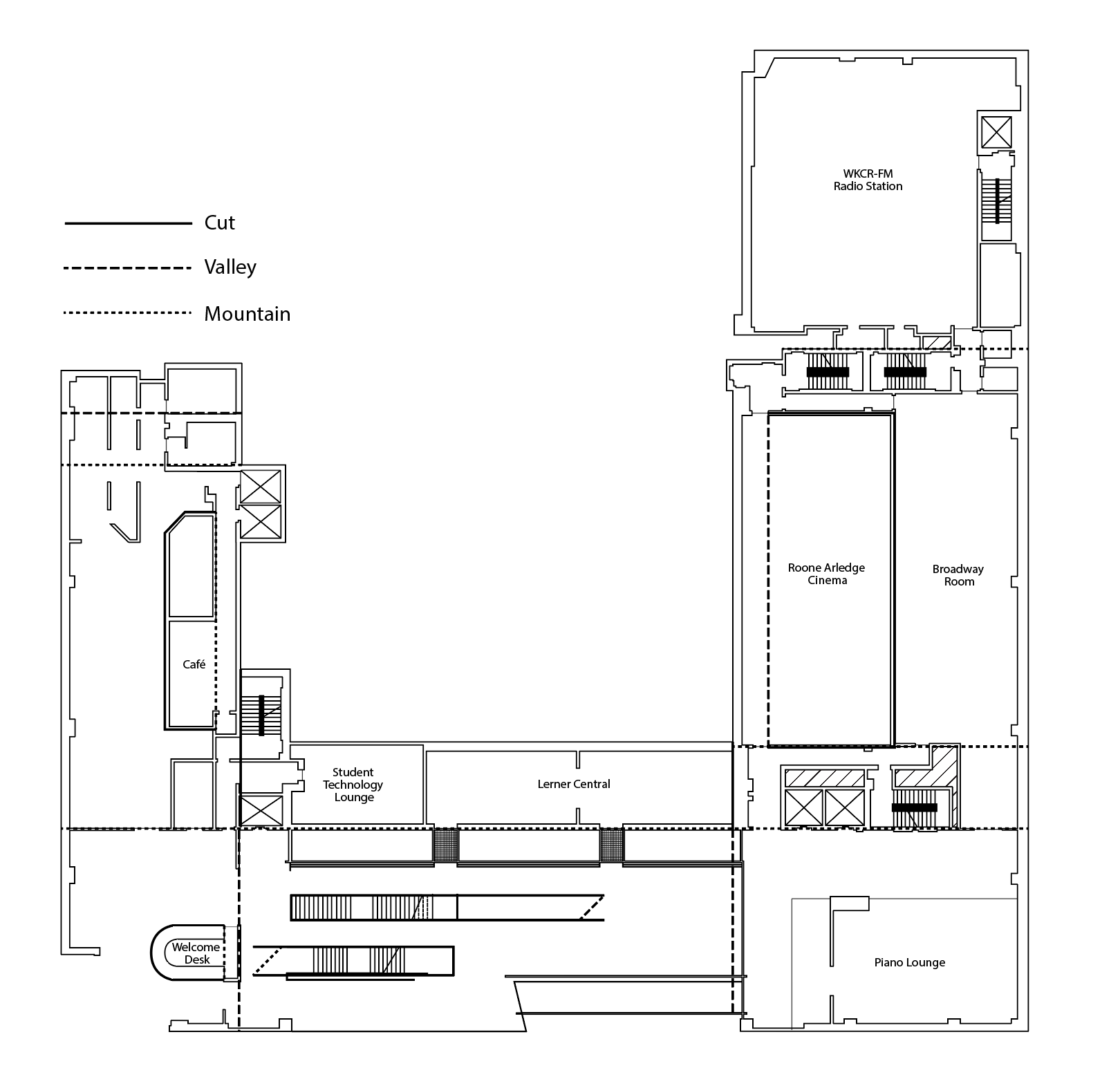

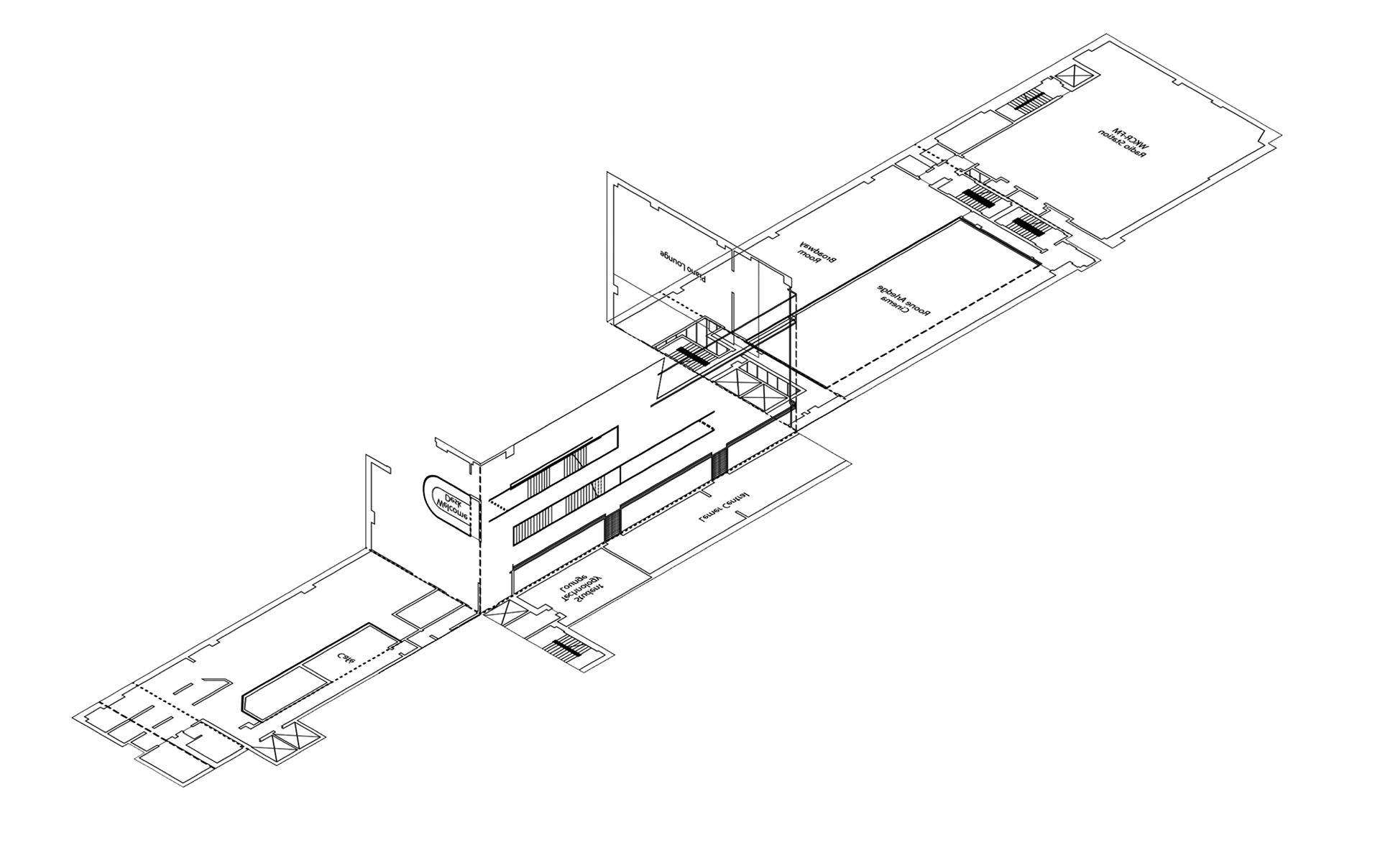

STEP 2: Use cut and fold to transform the floor plan.

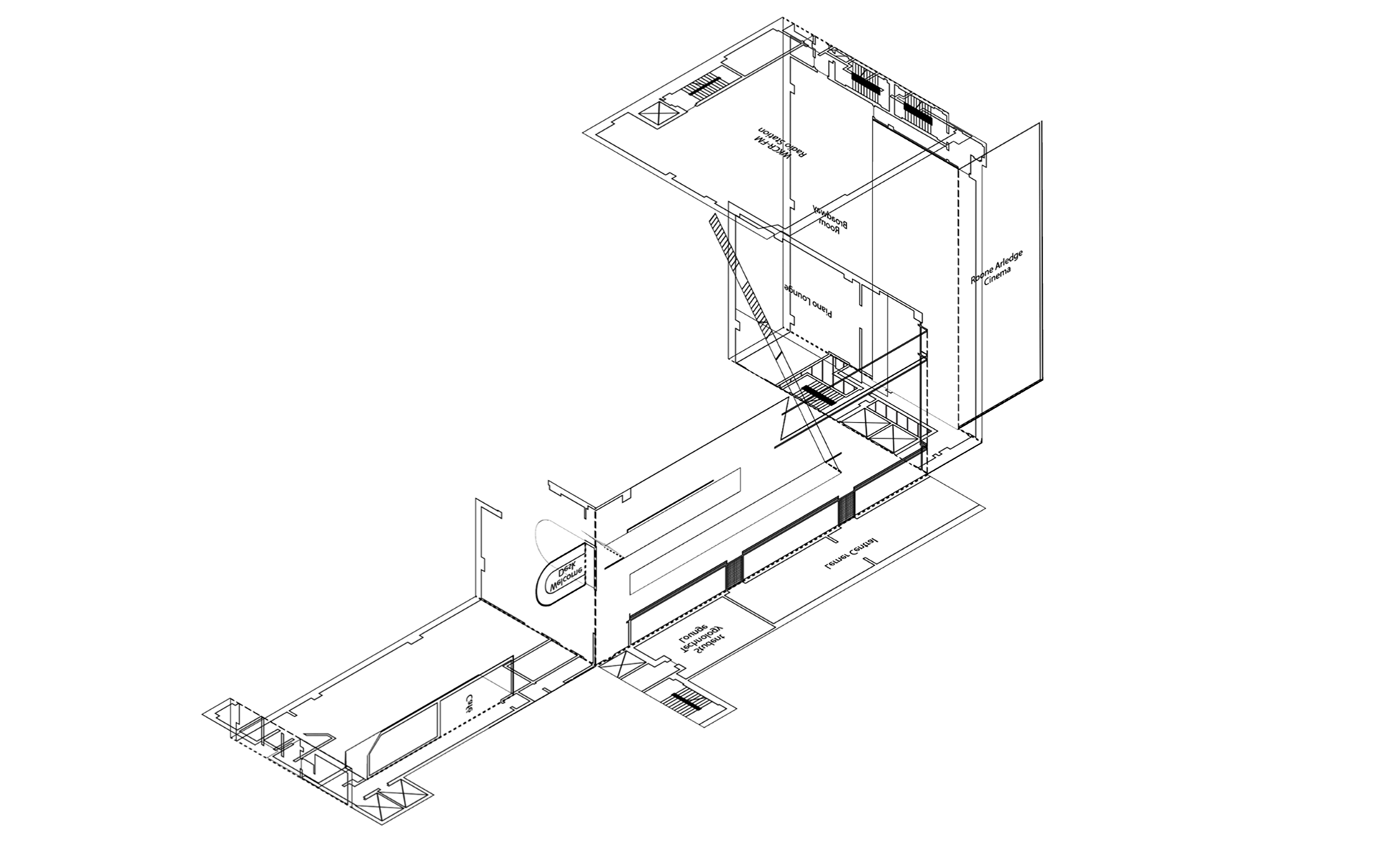

STEP 3: Fold the floor plan to create the elevation.

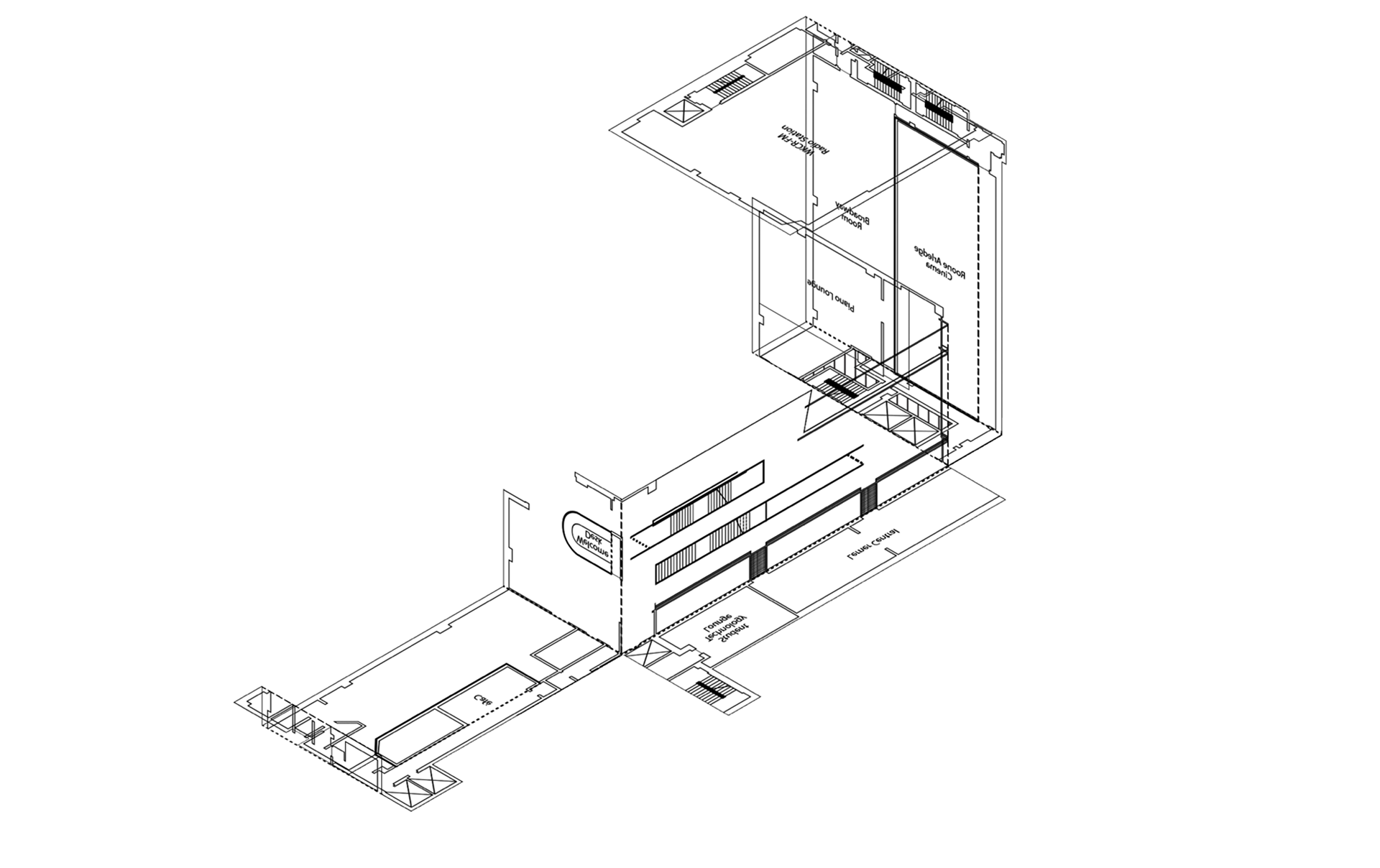

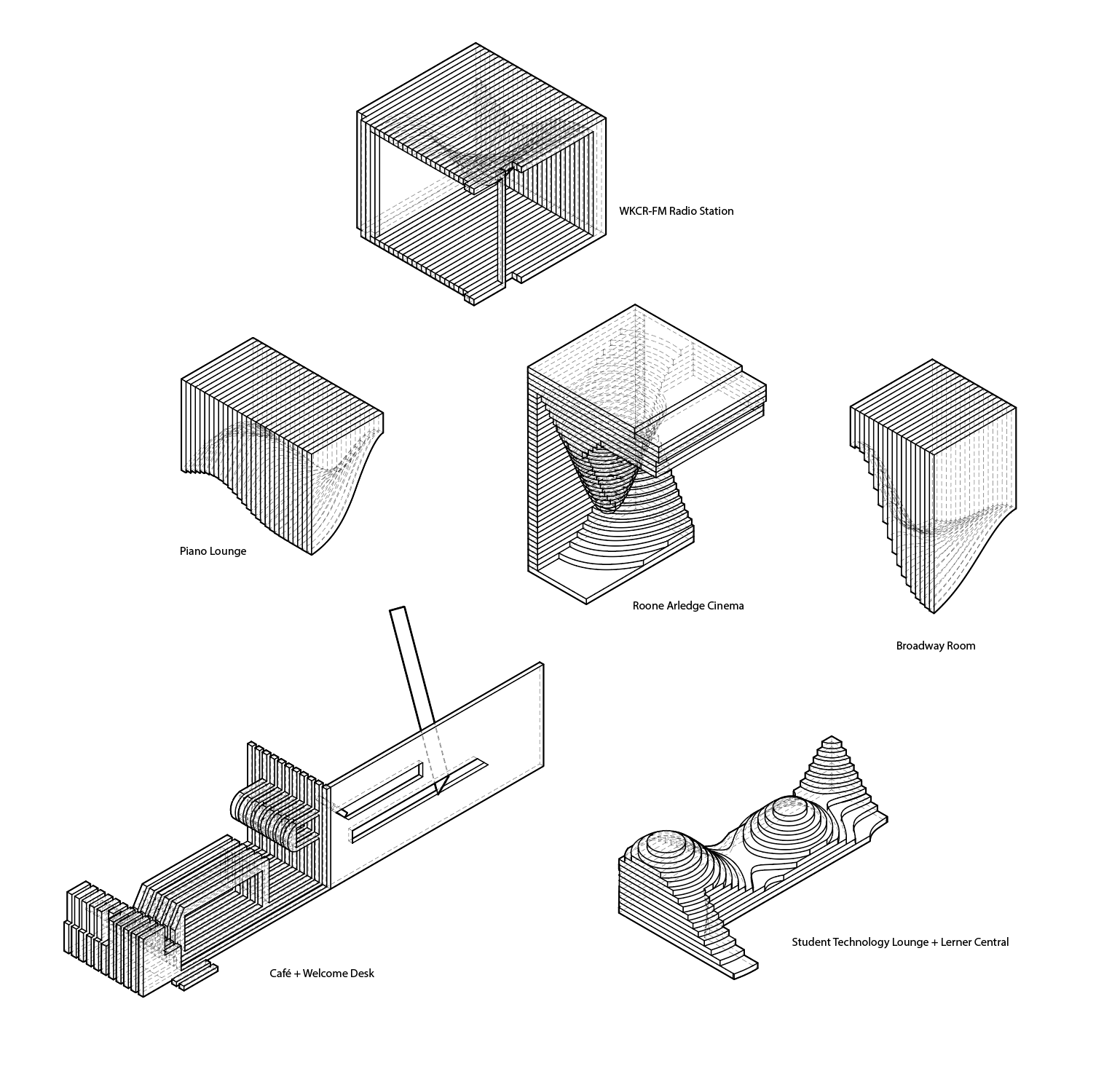

STEP 4: Turn different functional components inside out.

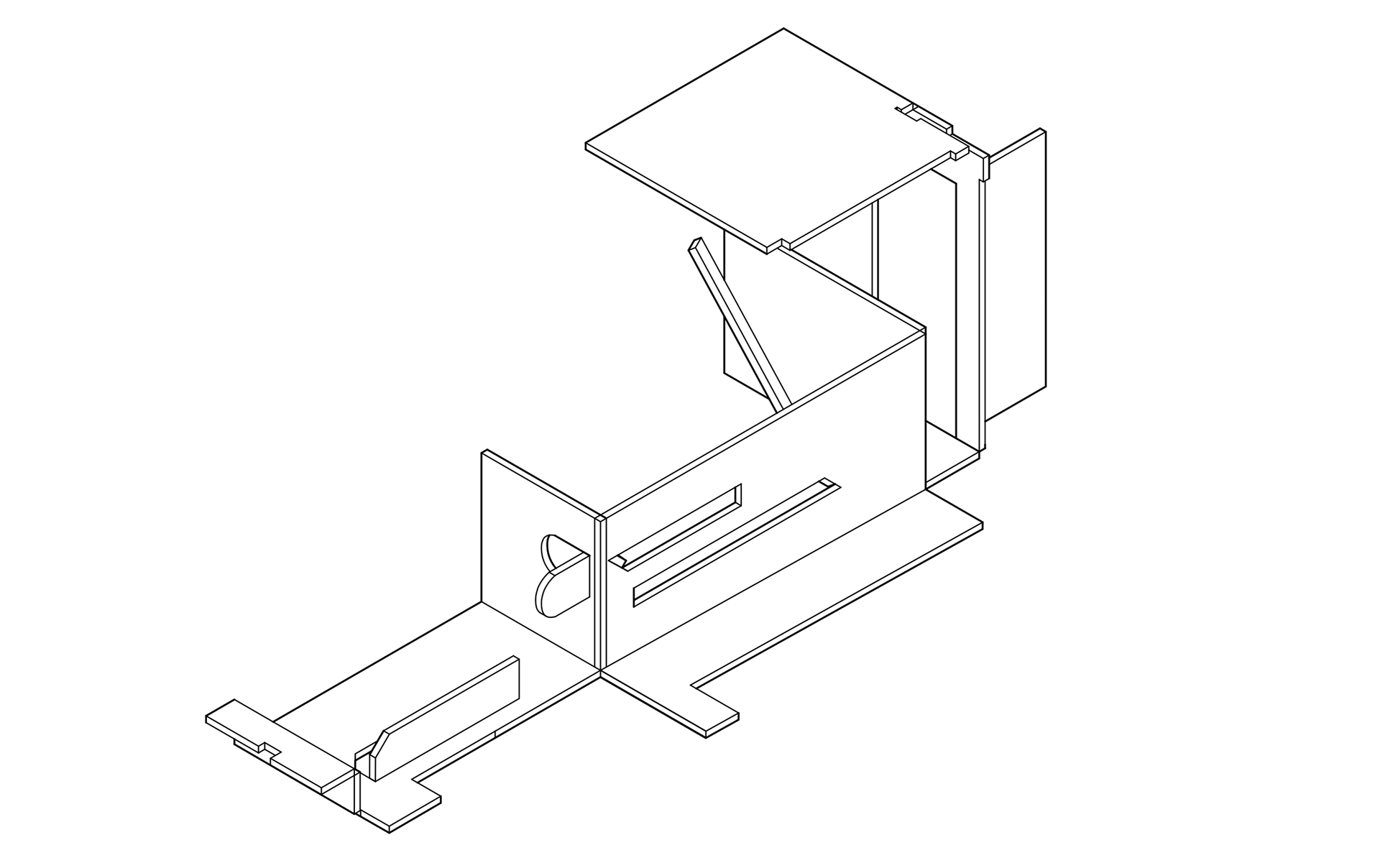

STEP 5: Generate a prototype based on the floor plan

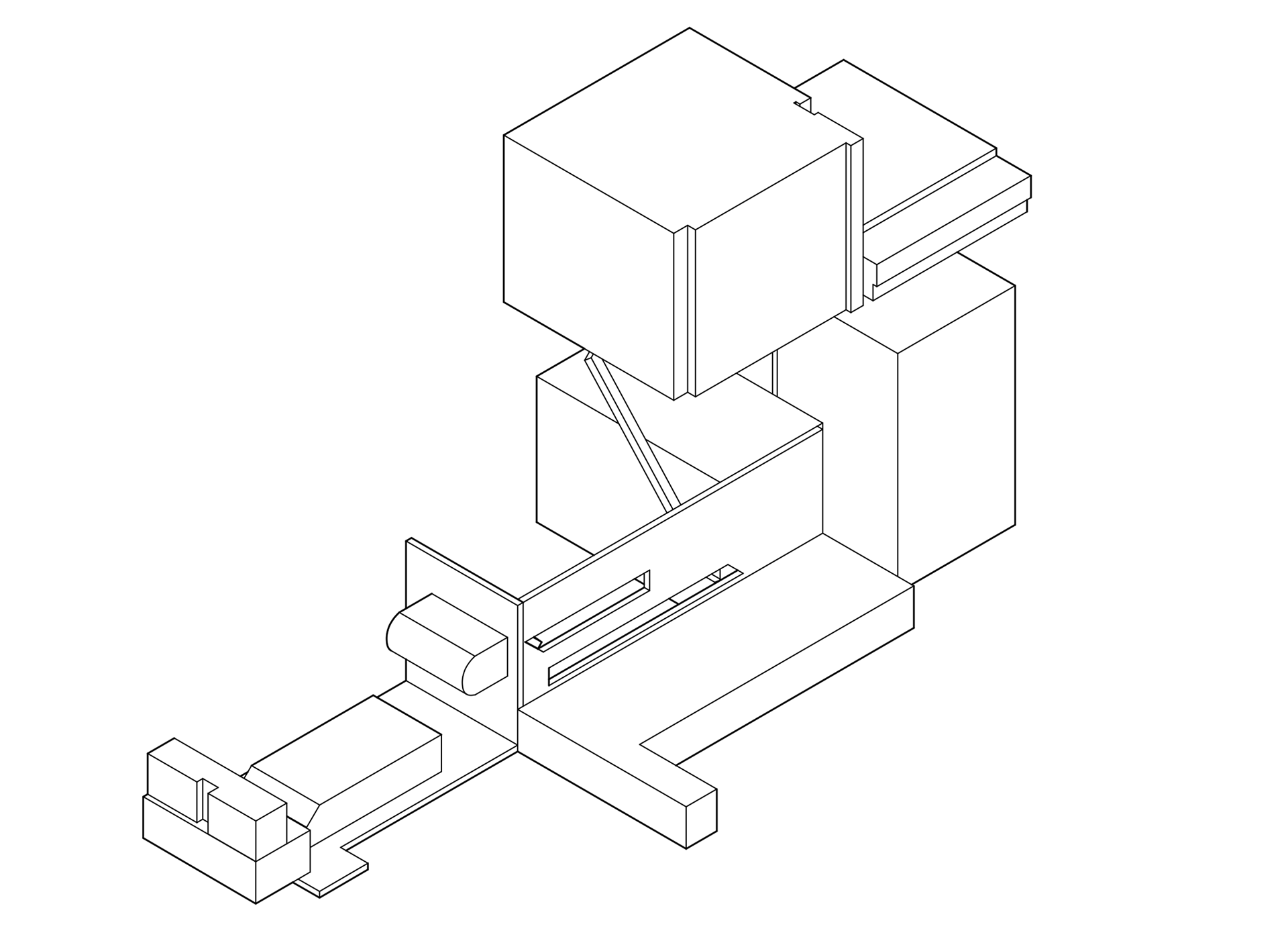

STEP 6: Extrude the plan to create volumes.
Fabrication: Layering

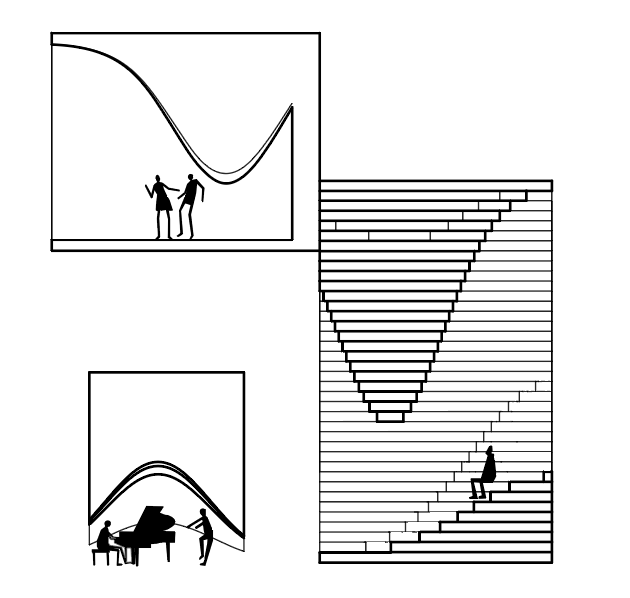

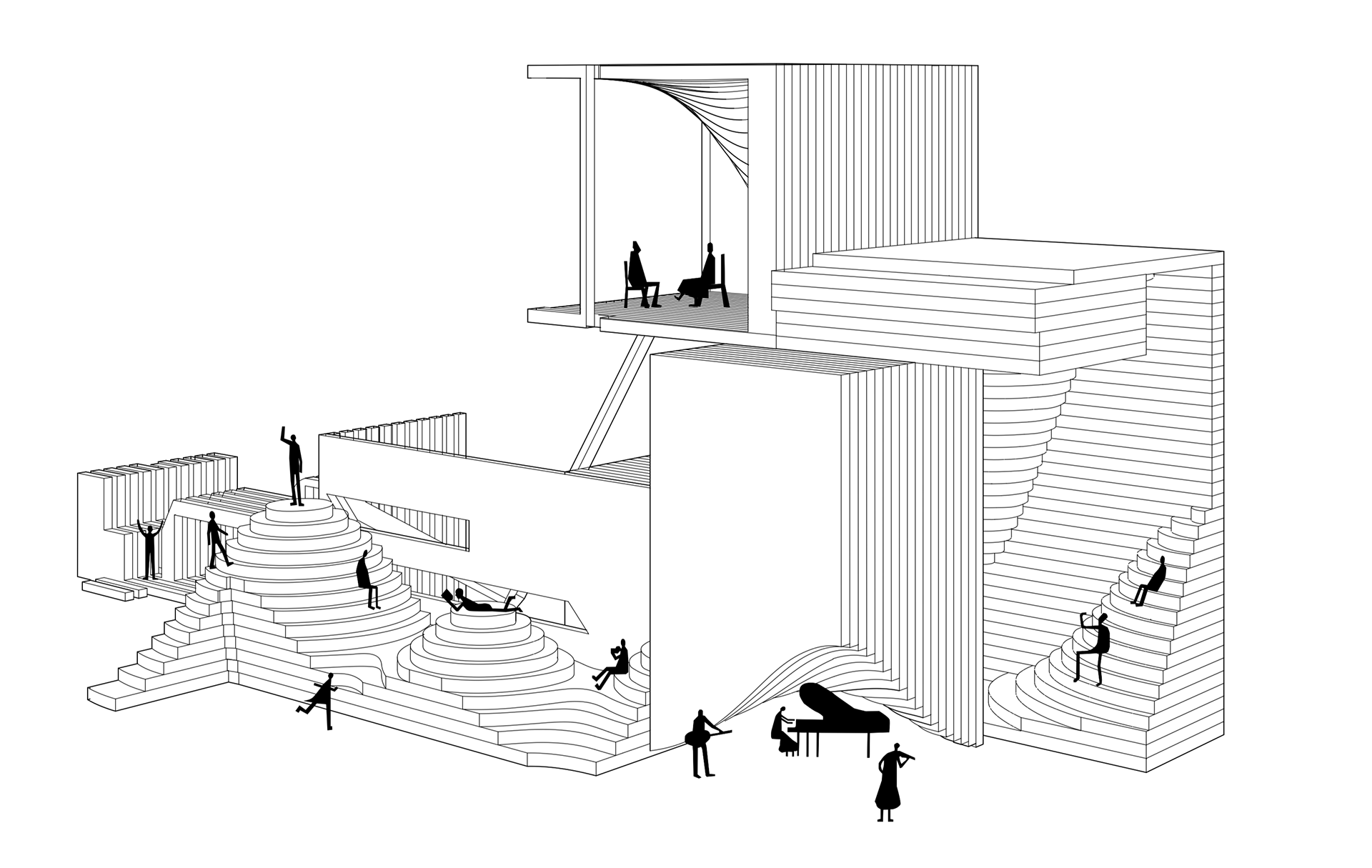

Use layering to create space for activities.

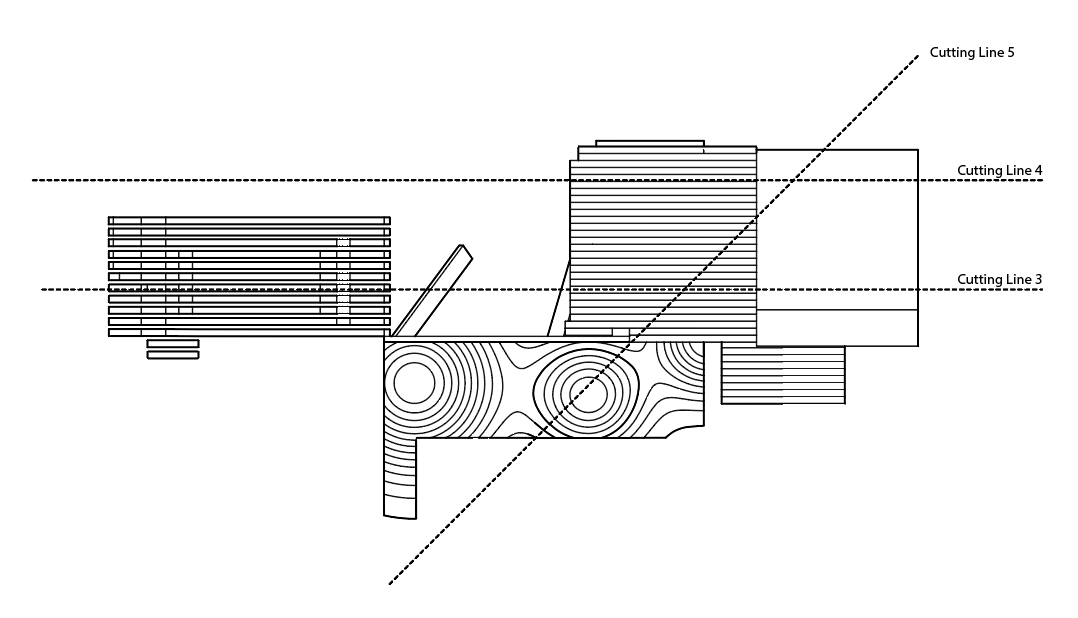

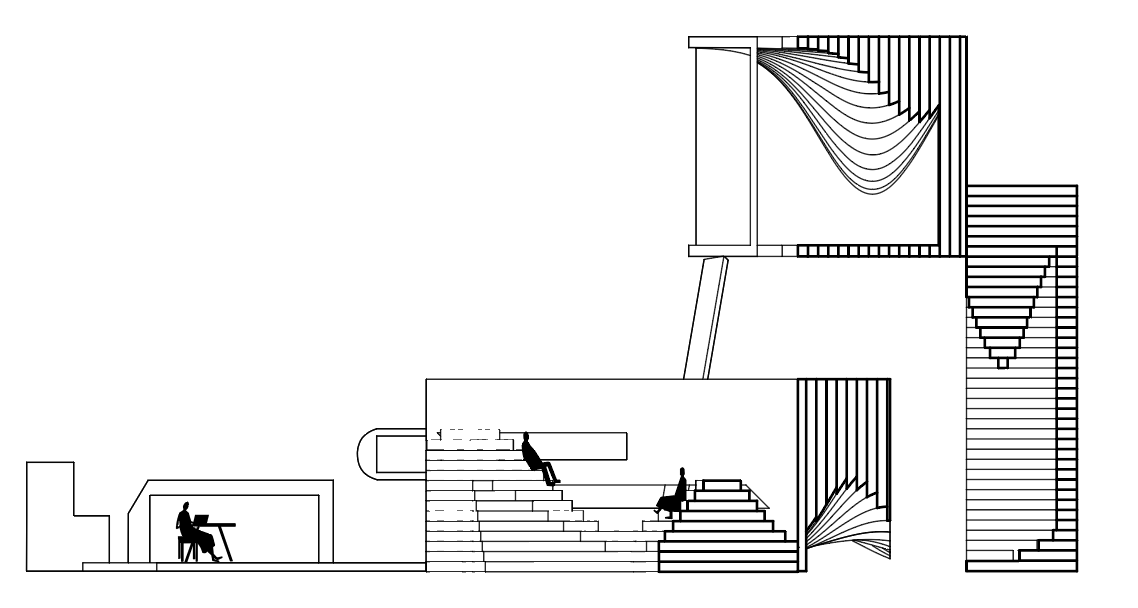

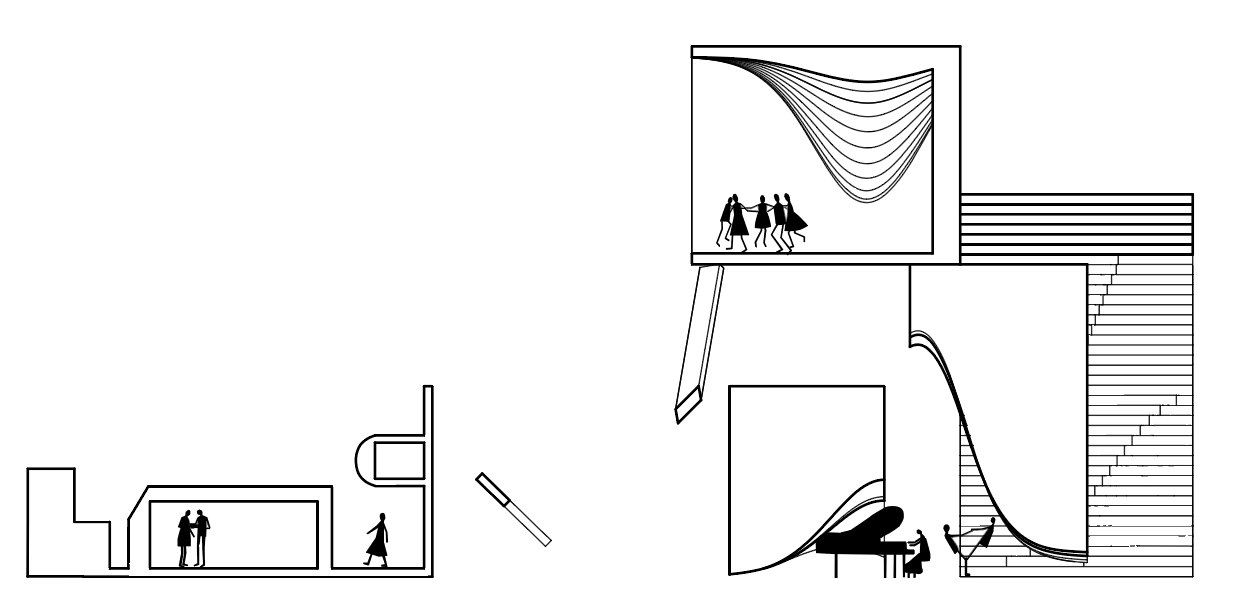

Plan and Section
Front

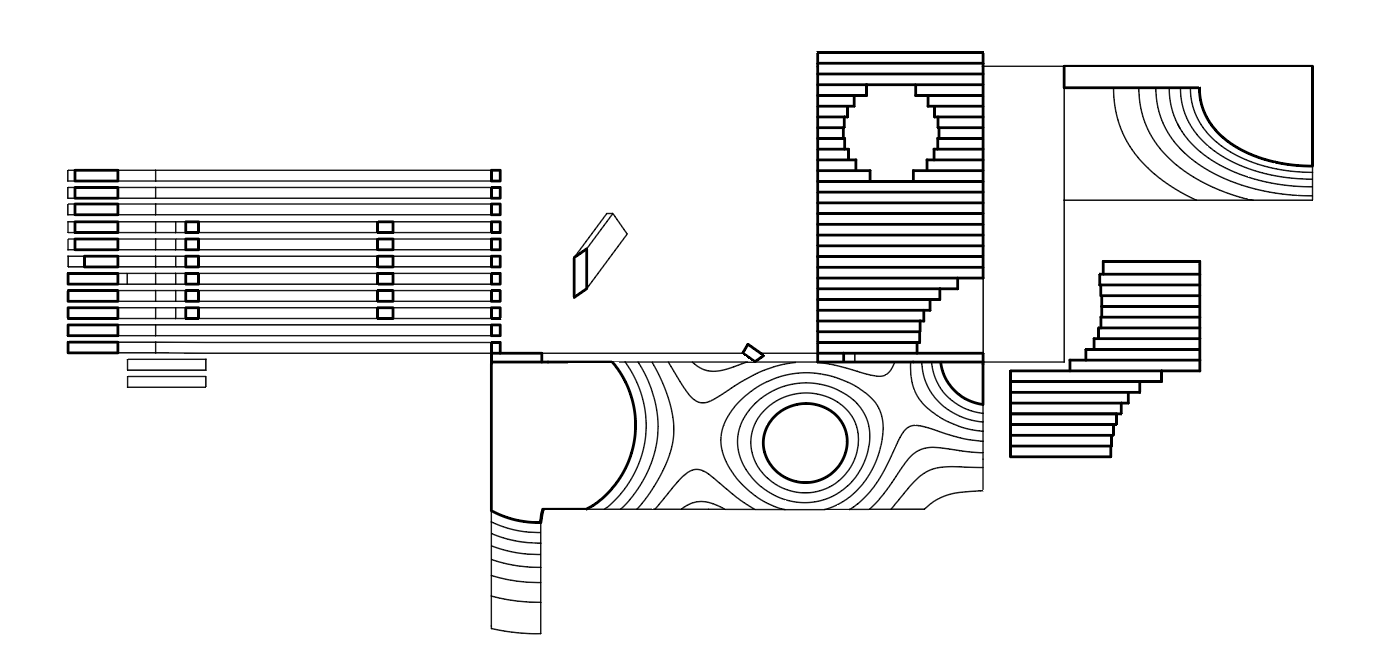

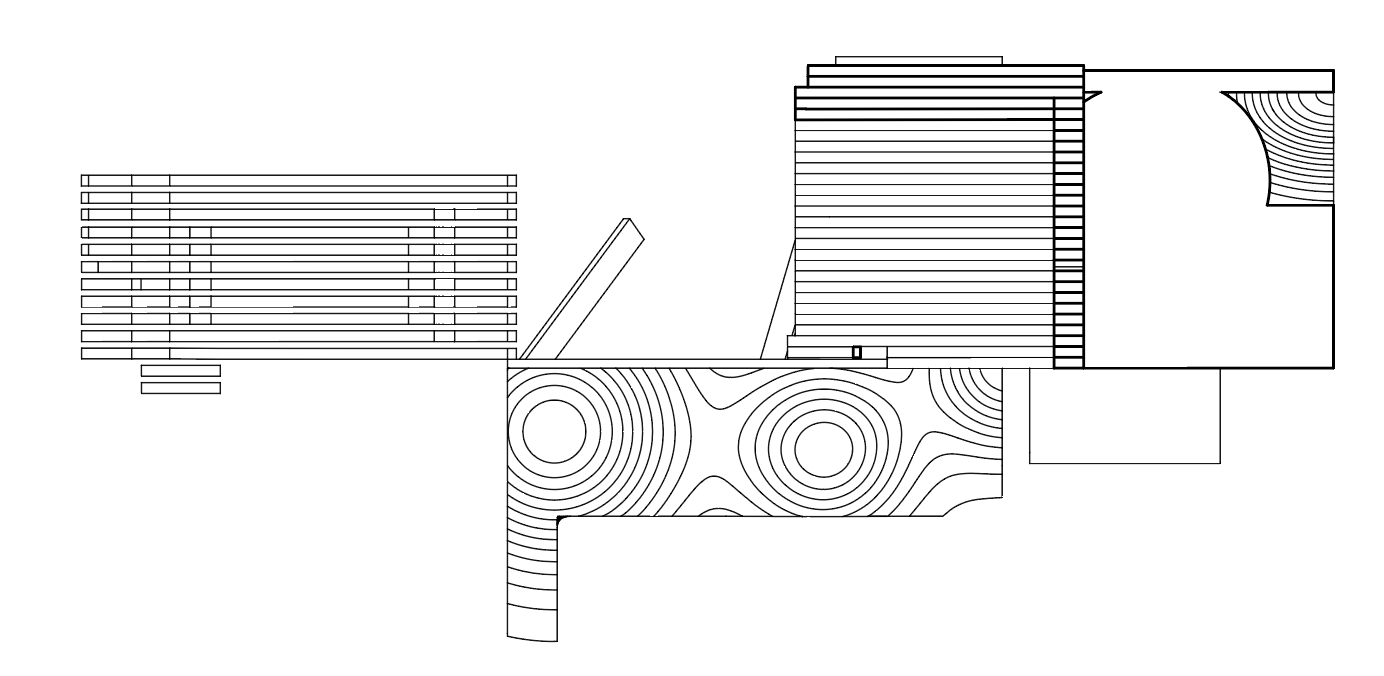

Top
Drawing 1
Drawing 2
Drawing 3
Drawing 4
Drawing 5

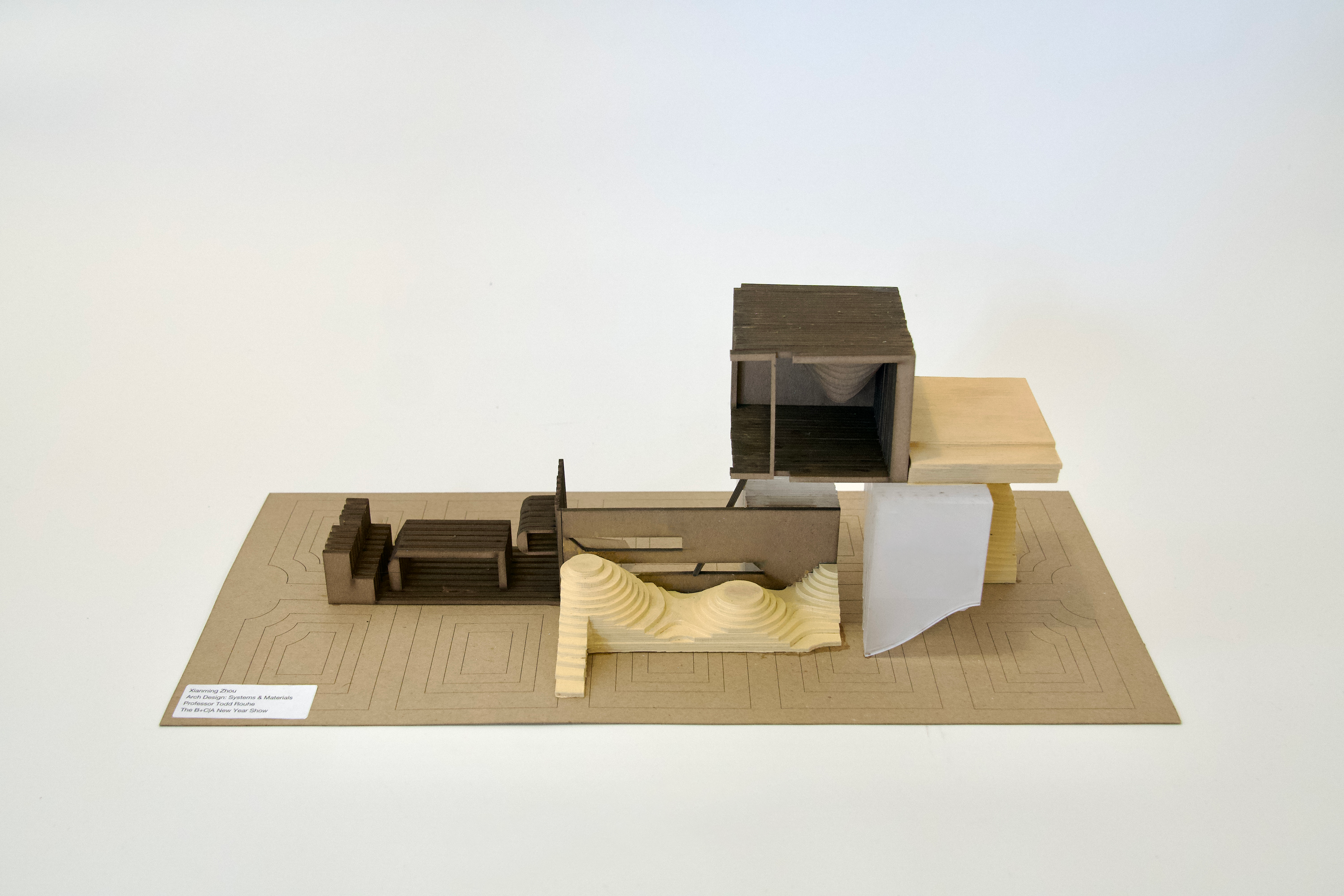

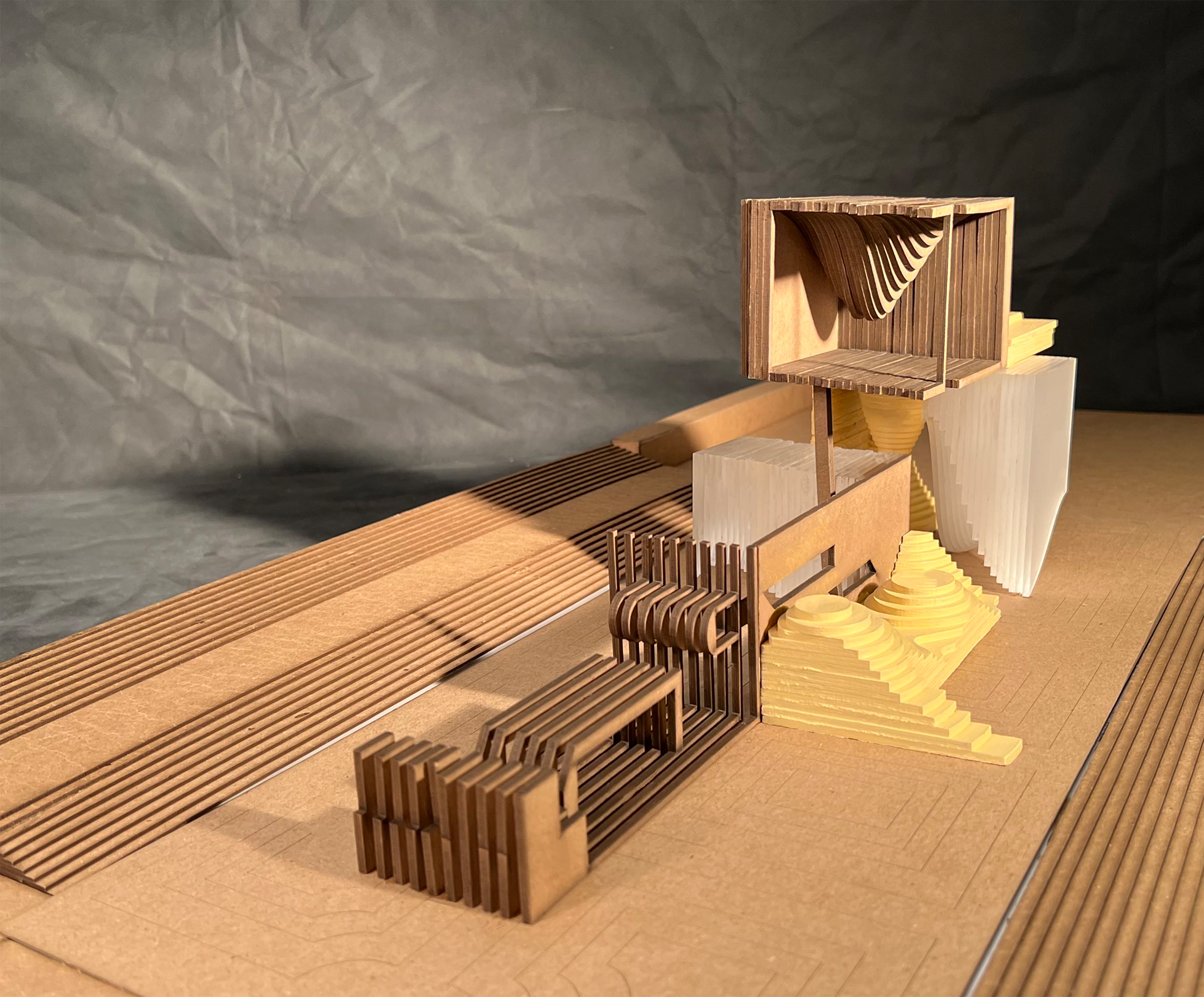

The Physical Model
